PDB : Converter (DC(Power Distributer) -> DC
Converter
The Model PDB supplies power to 2-wire single loop system and outputs non-isolated DC current or voltage.

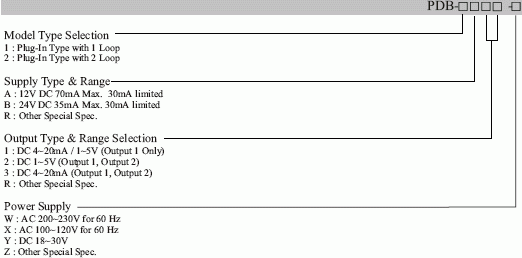

MODEL & SUFFIX CODE
PDB-(model)(in)(out1)(out2)-(power)
-(model) 1 : Plug-In Type with 1 Loop 2 : Plug-In Type with 2 Loop
(input)Supply Type A : 12V DC 70mA Max. 30mA limited B : 24V DC 35mA Max. 30mA limited R : Other Special Spec.
(output1)(output2) 1 : DC 4~20mA / 1~5V (Output 1 Only) 2 : DC 1~5V (Output 1, Output 2) 3 : DC 4~20mA (Output 1, Output 2) R : Other Special Spec.
-(power) W : AC 200~230V for 60 Hz X : AC 100~120V for 60 Hz Y : DC 18~30V Z : Other Special Spec. The Model PDB supplies power to 2-wire single loop system and outputs non-isolated DC current or voltage. ORDERING INFORMATION Specify code number and variables. - Code no. : PDB-Model/Supply/Output1/Output2-Power (Ex : PDB-1A2N-X) - Special Output Range (Ex. 0~20mA) GENERAL SPECIFICATIONS - Housing Material : Plastic ABS(Resin) Black - Isolation : Output to Power INSTALLATION - Power Supply : AC 100~120V or 200~230V / 60Hz (about 3VA), DC 18~30V (about 3Watts) - Operating Temperature : -15 ~ +55 C - Operating Humidity : 90% RH max. (Non-condensing) - Mounting : Wall or Rail mounting (Plu-in Type) - Dimension : 52(W) X 77(H) X 112(D) (Unit : mm) - Weight : about 400g PERFORMANCE - Accuracy : 0.1% LESS(F.S) at 23 C - Temperature Coefficient : 0.005% / C - Insulation Resistance : 100 MW or more with 500V DC between Input / Output / Power - Dielectric Strength : 1500V AC 0.5 mA/Min (Input to Output to Power) - Short Circuit Current : 100 mA Max. - Permissible Short-circuit Duration : Limited at about 30 mA SCHEMATIC CIRCUIT & CONNECTION DIAGRAM
|
