The types of operating principle of voltmeter are the moving coil type. |
|
|
|
|
|
|
|
|
|

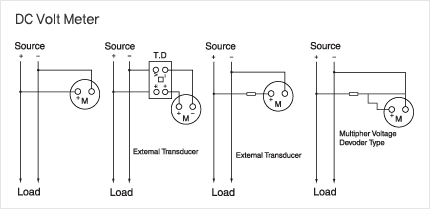

ㆍFor higher range than 750V, use external multiplier or voltage-dividing multiplier with a 1mA instrument. ㆍThe D.C volmeter shuld be connected to the positive side line as connection diagram. ㆍThe standard current consumption of these D.C voltmeter is 1mA.(1k Ω/V). |
|
|
|
|
형 식 |
|
직결사용 |
|
Shunt 사용 |
|
|
최저측정치 |
|
최대측정치 |
|
최저측정치 |
|
최대측정치 |
|
moving Coil type |
|
50mV |
|
750V |
|
- |
|
* / 100V |
| |
|
|
|
|
Shape of case |
|
Type |
|
|
|
Rated Curr. |
|
Operating Princ |
|
Accur(%) |
|
Freq |
|
Berden(VA) |
|
Rectangular(60x60mm) |
|
D-60 |
|
AC DC |
|
150, 300V 1, 600V |
|
|
|
±2.5 ±2.5 |
|
50~60Hz |
|
0.5 |
|
|
|
1K Ω/V |
|
Rectangular(60x80mm) |
|
D-68 |
|
AC DC |
|
150, 300V 1, 600V |
|
|
|
±2.5 ±2.5 |
|
50~60Hz |
|
0.5 |
|
|
|
1K Ω/V |
|
Rectangular(80x60mm) |
|
D-80 |
|
AC DC |
|
150, 300V 1, 600V |
|
|
|
±1.5 ±1.5 |
|
50~60Hz |
|
0.5 |
|
|
|
1K Ω/V |
|
Rectangular(100x83mm) |
|
D-100 |
|
AC DC |
|
150, 300V 1, 600V |
|
|
|
±1.5 ±1.5 |
|
50~60Hz |
|
5.0, 0.5 |
|
|
|
1K Ω/V |
|
Rectangular(80x80mm) Wide Angle |
|
D-800 |
|
AC DC |
|
150, 300V 1, 600V |
|
|
|
±1.5 ±1.5 |
|
50~60Hz |
|
0.5 |
|
|
|
1K Ω/V |
|
Rectangular(110x110mm) Wide Angle |
|
D-110 |
|
AC DC |
|
150, 300V 1, 600V |
|
|
|
±1.5 ±1.5 |
|
50~60Hz |
|
0.5 |
|
|
|
1K Ω/V |
|
Rectangular(70ø) |
|
D-70 |
|
AC DC |
|
150, 300V 1, 600V |
|
|
|
±2.5 ±2.5 |
|
50~60Hz |
|
0.5 |
|
|
|
1K Ω/V |
|
Rectangular(72x72mm) |
|
D-200 |
|
AC DC |
|
150, 300V 1, 600V |
|
|
|
±1.5 ±1.5 |
|
50~60Hz |
|
0.5 |
|
|
|
1K Ω/V |
|
Rectangular(98x98mm) |
|
D-300 |
|
AC DC |
|
150, 300V 1, 600V |
|
|
|
±1.5 ±1.5 |
|
50~60Hz |
|
0.5 |
|
|
|
1K Ω/V | |
|
